large_deformation/hyperelastic.py

Description

Nearly incompressible Mooney-Rivlin hyperelastic material model.

Large deformation is described using the total Lagrangian formulation. Models of this kind can be used to model e.g. rubber or some biological materials.

Find such that:

where

	deformation gradient
	right Cauchy-Green deformation tensor
	Green strain tensor
	effective second Piola-Kirchhoff stress tensor

The effective stress is given by:

source code

# -*- coding: utf-8 -*-
r"""
Nearly incompressible Mooney-Rivlin hyperelastic material model.

Large deformation is described using the total Lagrangian formulation.
Models of this kind can be used to model e.g. rubber or some biological
materials.

Find :math:`\ul{u}` such that:

.. math::
    \intl{\Omega\suz}{} \left( \ull{S}\eff(\ul{u})
    + K(J-1)\; J \ull{C}^{-1} \right) : \delta \ull{E}(\ul{v}) \difd{V}
    = 0
    \;, \quad \forall \ul{v} \;,

where

.. list-table::
   :widths: 20 80

   * - :math:`\ull{F}`
     - deformation gradient :math:`F_{ij} = \pdiff{x_i}{X_j}`
   * - :math:`J`
     - :math:`\det(F)`
   * - :math:`\ull{C}`
     -  right Cauchy-Green deformation tensor :math:`C = F^T F`
   * - :math:`\ull{E}(\ul{u})`
     - Green strain tensor :math:`E_{ij} = \frac{1}{2}(\pdiff{u_i}{X_j} +
       \pdiff{u_j}{X_i} + \pdiff{u_m}{X_i}\pdiff{u_m}{X_j})`
   * - :math:`\ull{S}\eff(\ul{u})`
     - effective second Piola-Kirchhoff stress tensor

The effective stress :math:`\ull{S}\eff(\ul{u})` is given by:

.. math::
    \ull{S}\eff(\ul{u}) = \mu J^{-\frac{2}{3}}(\ull{I}
    - \frac{1}{3}\tr(\ull{C}) \ull{C}^{-1})
    + \kappa J^{-\frac{4}{3}} (\tr(\ull{C}\ull{I} - \ull{C}
    - \frac{2}{6}((\tr{\ull{C}})^2 - \tr{(\ull{C}^2)})\ull{C}^{-1})
    \;.
"""
from __future__ import print_function
from __future__ import absolute_import
import numpy as nm

from sfepy import data_dir

filename_mesh = data_dir + '/meshes/3d/cylinder.mesh'

options = {
    'nls' : 'newton',
    'ls' : 'ls',
    'ts' : 'ts',
    'save_times' : 'all',
    'post_process_hook' : 'stress_strain',
}


field_1 = {
    'name' : 'displacement',
    'dtype' : nm.float64,
    'shape' : 3,
    'region' : 'Omega',
    'approx_order' : 1,
}

material_1 = {
    'name' : 'solid',
    'values' : {
        'K'  : 1e3, # bulk modulus
        'mu' : 20e0, # shear modulus of neoHookean term
        'kappa' : 10e0, # shear modulus of Mooney-Rivlin term
    }
}

variables = {
    'u' : ('unknown field', 'displacement', 0),
    'v' : ('test field', 'displacement', 'u'),
}

regions = {
    'Omega' : 'all',
    'Left' : ('vertices in (x < 0.001)', 'facet'),
    'Right' : ('vertices in (x > 0.099)', 'facet'),
}

##
# Dirichlet BC + related functions.
ebcs = {
    'l' : ('Left', {'u.all' : 0.0}),
    'r' : ('Right', {'u.0' : 0.0, 'u.[1,2]' : 'rotate_yz'}),
}

centre = nm.array( [0, 0], dtype = nm.float64 )

def rotate_yz(ts, coor, **kwargs):
    from sfepy.linalg import rotation_matrix2d

    vec = coor[:,1:3] - centre

    angle = 10.0 * ts.step
    print('angle:', angle)

    mtx = rotation_matrix2d( angle )
    vec_rotated = nm.dot( vec, mtx )

    displacement = vec_rotated - vec

    return displacement

functions = {
    'rotate_yz' : (rotate_yz,),
}

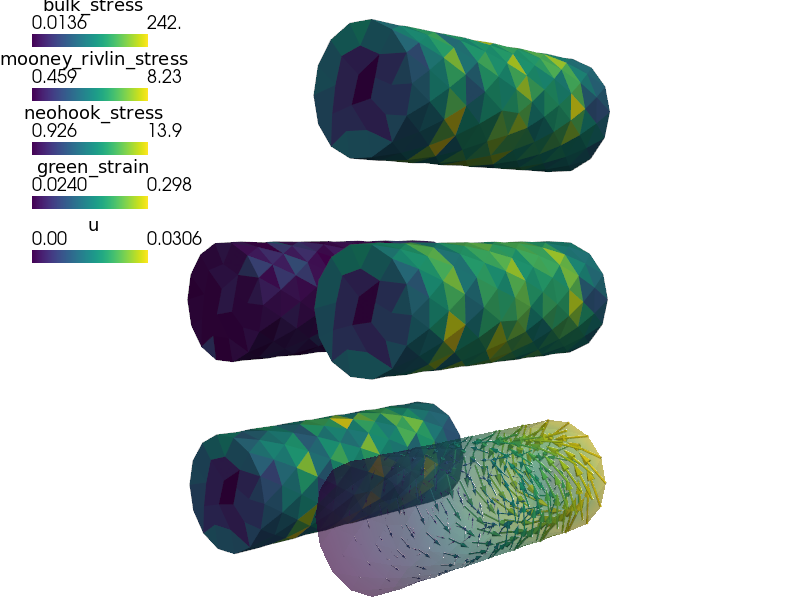

def stress_strain( out, problem, state, extend = False ):
    from sfepy.base.base import Struct, debug

    ev = problem.evaluate
    strain = ev('dw_tl_he_neohook.i.Omega( solid.mu, v, u )',
                mode='el_avg', term_mode='strain')
    out['green_strain'] = Struct(name='output_data',
                                 mode='cell', data=strain, dofs=None)

    stress = ev('dw_tl_he_neohook.i.Omega( solid.mu, v, u )',
                mode='el_avg', term_mode='stress')
    out['neohook_stress'] = Struct(name='output_data',
                                   mode='cell', data=stress, dofs=None)

    stress = ev('dw_tl_he_mooney_rivlin.i.Omega( solid.kappa, v, u )',
                mode='el_avg', term_mode='stress')
    out['mooney_rivlin_stress'] = Struct(name='output_data',
                                         mode='cell', data=stress, dofs=None)

    stress = ev('dw_tl_bulk_penalty.i.Omega( solid.K, v, u )',
                mode='el_avg', term_mode= 'stress')
    out['bulk_stress'] = Struct(name='output_data',
                                mode='cell', data=stress, dofs=None)

    return out

##
# Balance of forces.
integral_1 = {
    'name' : 'i',
    'order' : 1,
}
equations = {
    'balance' : """dw_tl_he_neohook.i.Omega( solid.mu, v, u )
                 + dw_tl_he_mooney_rivlin.i.Omega( solid.kappa, v, u )
                 + dw_tl_bulk_penalty.i.Omega( solid.K, v, u )
                 = 0""",
}

##
# Solvers etc.
solver_0 = {
    'name' : 'ls',
    'kind' : 'ls.scipy_direct',
}

solver_1 = {
    'name' : 'newton',
    'kind' : 'nls.newton',

    'i_max'      : 5,
    'eps_a'      : 1e-10,
    'eps_r'      : 1.0,
    'macheps'    : 1e-16,
    'lin_red'    : 1e-2, # Linear system error < (eps_a * lin_red).
    'ls_red'     : 0.1,
    'ls_red_warp': 0.001,
    'ls_on'      : 1.1,
    'ls_min'     : 1e-5,
    'check'      : 0,
    'delta'      : 1e-6,
}

solver_2 = {
    'name' : 'ts',
    'kind' : 'ts.simple',

    't0'    : 0,
    't1'    : 1,
    'dt'    : None,
    'n_step' : 11, # has precedence over dt!
    'verbose' : 1,
}
