homogenization/linear_elastic_mM.py

Description

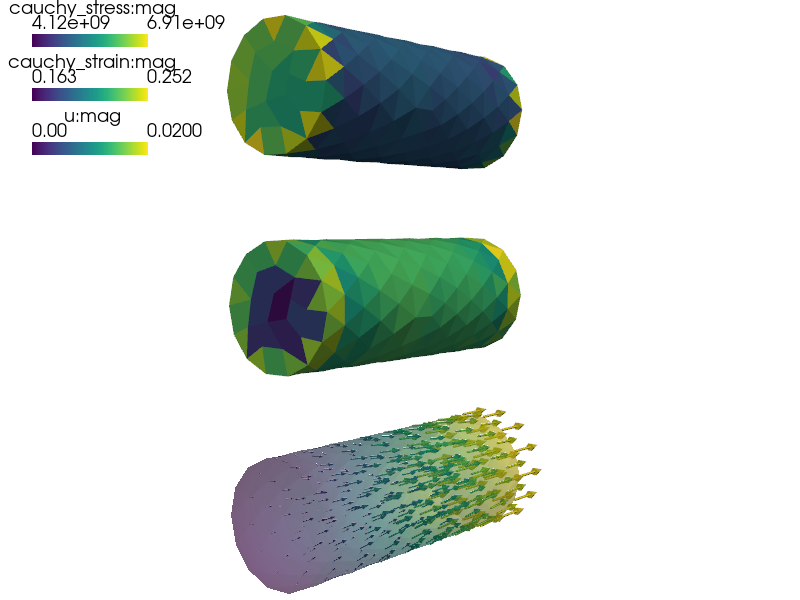

Linear elasticity with effective macroscopic properties determined according to the theory of homogenization from a periodic microstructure.

source code

"""
Linear elasticity with effective macroscopic properties determined
according to the theory of homogenization from a periodic microstructure.
"""
import os
from sfepy import data_dir, base_dir
from sfepy.base.base import nm
from sfepy.homogenization.micmac import get_homog_coefs_linear
from sfepy.homogenization.recovery import save_recovery_region,\
    recover_micro_hook

def post_process(out, pb, state, extend=False):
    from sfepy.base.base import Struct

    if isinstance(state, dict):
        pass
    else:
        stress = pb.evaluate('ev_cauchy_stress.i.Omega(solid.D, u)',
                             mode='el_avg')
        strain = pb.evaluate('ev_cauchy_strain.i.Omega(u)',
                             mode='el_avg')
        out['cauchy_strain'] = Struct(name='output_data',
                                      mode='cell', data=strain,
                                      dofs=None)
        out['cauchy_stress'] = Struct(name='output_data',
                                      mode='cell', data=stress,
                                      dofs=None)

        if pb.conf.options.get('recover_micro', False):
            rname = pb.conf.options.recovery_region
            region = pb.domain.regions[rname]

            filename = os.path.join(os.path.dirname(pb.get_output_name()),
                                    'recovery_region.vtk')
            save_recovery_region(pb, rname, filename=filename);

            rstrain = pb.evaluate('ev_cauchy_strain.i.%s(u)' % rname,
                                  mode='el_avg')[:, 0, ...]

            recover_micro_hook(pb.conf.options.micro_filename,
                               region, {'strain': rstrain}, 0.01,
                               output_dir=pb.conf.options.output_dir)

    return out

def get_elements(coors, domain=None):
    return nm.arange(50, domain.shape.n_el, 100)

regenerate = True

def get_homog(ts, coors, mode=None,
              equations=None, term=None, problem=None, **kwargs):
    global regenerate

    out = get_homog_coefs_linear(ts, coors, mode, regenerate=regenerate,
                                 micro_filename=options['micro_filename'],
                                 output_dir=problem.conf.options.output_dir)
    regenerate = False

    return out

functions = {
    'get_elements' : (get_elements,),
    'get_homog' : (get_homog,),
}

filename_mesh = data_dir + '/meshes/3d/cylinder.mesh'

regions = {
    'Omega' : 'all',
    'Left' : ('vertices in (x < 0.001)', 'facet'),
    'Right' : ('vertices in (x > 0.099)', 'facet'),
    'Recovery' : 'cells by get_elements',
}

materials = {
    'solid' : 'get_homog',
}

fields = {
    '3_displacement' : ('real', 3, 'Omega', 1),
}

integrals = {
    'i' : 1,
}

variables = {
    'u' : ('unknown field', '3_displacement', 0),
    'v' : ('test field', '3_displacement', 'u'),
}

ebcs = {
    'Fixed' : ('Left', {'u.all' : 0.0}),
    'PerturbedSurface' : ('Right', {'u.0' : 0.02, 'u.1' : 0.0, 'u.2' : 0.0}),
}

equations = {
    'balance_of_forces' :
    """dw_lin_elastic.i.Omega(solid.D, v, u) = 0""",
}

solvers = {
    'ls' : ('ls.scipy_direct', {}),
    'newton' : ('nls.newton', {
        'i_max'      : 1,
        'eps_a'      : 1e-6,
    }),
}

micro_filename = base_dir \
                 + '/examples/homogenization/linear_homogenization_up.py'

options = {
    'nls' : 'newton',
    'ls' : 'ls',
    'output_dir' : 'output',
    'post_process_hook' : 'post_process',
    'output_prefix' : 'macro:',
    'recover_micro': True,
    'recovery_region' : 'Recovery',
    'micro_filename' : micro_filename,
}
