multi_physics/biot_parallel_interactive.py

Description

Parallel assembling and solving of a Biot problem (deformable porous medium), using commands for interactive use.

Find \ul{u}, p such that:

\int_{\Omega} D_{ijkl}\ e_{ij}(\ul{v}) e_{kl}(\ul{u})
- \int_{\Omega}  p\ \alpha_{ij} e_{ij}(\ul{v})
= 0
\;, \quad \forall \ul{v} \;,

\int_{\Omega} q\ \alpha_{ij} e_{ij}(\ul{u})
+ \int_{\Omega} K_{ij} \nabla_i q \nabla_j p
= 0
\;, \quad \forall q \;,

where

D_{ijkl} = \mu (\delta_{ik} \delta_{jl}+\delta_{il} \delta_{jk}) +
\lambda \ \delta_{ij} \delta_{kl}
\;.

Important Notes

  • This example requires petsc4py, mpi4py and (optionally) pymetis with their dependencies installed!

  • This example generates a number of files - do not use an existing non-empty directory for the output_dir argument.

  • Use the --clear option with care!

Notes

  • Each task is responsible for a subdomain consisting of a set of cells (a cell region).

  • Each subdomain owns PETSc DOFs within a consecutive range.

  • When both global and task-local variables exist, the task-local variables have _i suffix.

  • This example shows how to use a nonlinear solver from PETSc.

  • This example can serve as a template for solving a (non)linear multi-field problem - just replace the equations in create_local_problem().

  • The material parameter \alpha_{ij} is artificially high to be able to see the pressure influence on displacements.

  • The command line options are saved into <output_dir>/options.txt file.

Usage Examples

See all options:

python3 sfepy/examples/multi_physics/biot_parallel_interactive.py -h

See PETSc options:

python3 sfepy/examples/multi_physics/biot_parallel_interactive.py -help

Single process run useful for debugging with debug():

python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel

Parallel runs:

mpiexec -n 3 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape=101,101

mpiexec -n 3 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape=101,101 --metis

mpiexec -n 8 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape 101,101 --metis -snes_monitor -snes_view -snes_converged_reason -ksp_monitor

Using FieldSplit preconditioner:

mpiexec -n 2 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel --shape=101,101 -snes_monitor -snes_converged_reason -ksp_monitor -pc_type fieldsplit

mpiexec -n 8 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel --shape=1001,1001 --metis -snes_monitor -snes_converged_reason -ksp_monitor -pc_type fieldsplit -pc_fieldsplit_type additive

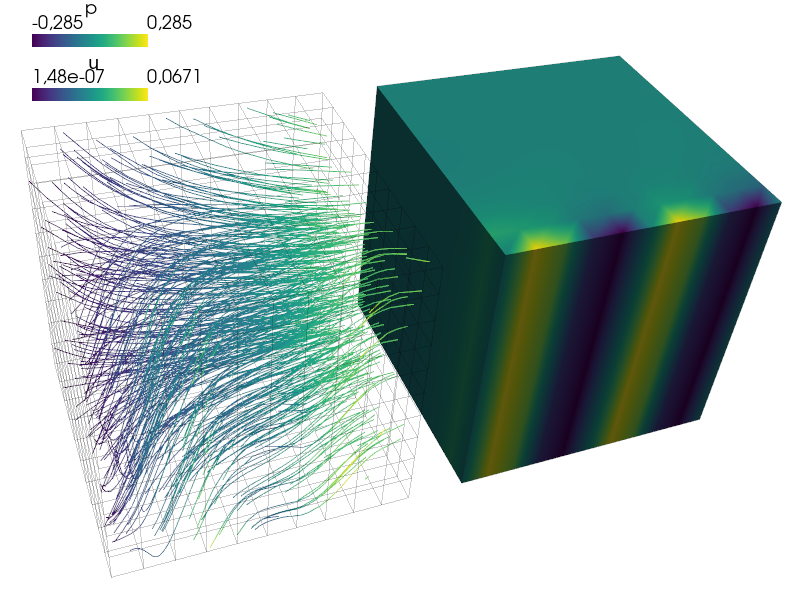

View the results using:

sfepy-view output-parallel/sol.h5
../_images/multi_physics-biot_parallel_interactive1.png

source code

#!/usr/bin/env python
r"""
Parallel assembling and solving of a Biot problem (deformable porous medium),
using commands for interactive use.

Find :math:`\ul{u}`, :math:`p` such that:

.. math::
    \int_{\Omega} D_{ijkl}\ e_{ij}(\ul{v}) e_{kl}(\ul{u})
    - \int_{\Omega}  p\ \alpha_{ij} e_{ij}(\ul{v})
    = 0
    \;, \quad \forall \ul{v} \;,

    \int_{\Omega} q\ \alpha_{ij} e_{ij}(\ul{u})
    + \int_{\Omega} K_{ij} \nabla_i q \nabla_j p
    = 0
    \;, \quad \forall q \;,

where

.. math::
    D_{ijkl} = \mu (\delta_{ik} \delta_{jl}+\delta_{il} \delta_{jk}) +
    \lambda \ \delta_{ij} \delta_{kl}
    \;.

Important Notes
---------------

- This example requires petsc4py, mpi4py and (optionally) pymetis with their
  dependencies installed!
- This example generates a number of files - do not use an existing non-empty
  directory for the ``output_dir`` argument.
- Use the ``--clear`` option with care!

Notes
-----

- Each task is responsible for a subdomain consisting of a set of cells (a cell
  region).
- Each subdomain owns PETSc DOFs within a consecutive range.
- When both global and task-local variables exist, the task-local
  variables have ``_i`` suffix.
- This example shows how to use a nonlinear solver from PETSc.
- This example can serve as a template for solving a (non)linear multi-field
  problem - just replace the equations in :func:`create_local_problem()`.
- The material parameter :math:`\alpha_{ij}` is artificially high to be able to
  see the pressure influence on displacements.
- The command line options are saved into <output_dir>/options.txt file.

Usage Examples
--------------

See all options::

  python3 sfepy/examples/multi_physics/biot_parallel_interactive.py -h

See PETSc options::

  python3 sfepy/examples/multi_physics/biot_parallel_interactive.py -help

Single process run useful for debugging with :func:`debug()
<sfepy.base.base.debug>`::

  python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel

Parallel runs::

  mpiexec -n 3 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape=101,101

  mpiexec -n 3 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape=101,101 --metis

  mpiexec -n 8 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel -2 --shape 101,101 --metis -snes_monitor -snes_view -snes_converged_reason -ksp_monitor

Using FieldSplit preconditioner::

  mpiexec -n 2 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel --shape=101,101 -snes_monitor -snes_converged_reason -ksp_monitor -pc_type fieldsplit

  mpiexec -n 8 python3 sfepy/examples/multi_physics/biot_parallel_interactive.py output-parallel --shape=1001,1001 --metis -snes_monitor -snes_converged_reason -ksp_monitor -pc_type fieldsplit -pc_fieldsplit_type additive

View the results using::

  sfepy-view output-parallel/sol.h5
"""
from __future__ import absolute_import
from argparse import RawDescriptionHelpFormatter, ArgumentParser
import os
import sys
sys.path.append('.')

import numpy as nm

from sfepy.base.base import output, Struct
from sfepy.base.ioutils import ensure_path, remove_files_patterns, save_options
from sfepy.base.timing import Timer
from sfepy.discrete.fem import Mesh, FEDomain, Field
from sfepy.discrete.common.region import Region
from sfepy.discrete import (FieldVariable, Material, Integral, Function,
                            Equation, Equations, Problem)
from sfepy.discrete.conditions import Conditions, EssentialBC
from sfepy.terms import Term
from sfepy.solvers.ls import PETScKrylovSolver
from sfepy.solvers.nls import PETScNonlinearSolver
from sfepy.mechanics.matcoefs import stiffness_from_lame

import sfepy.parallel.parallel as pl
from sfepy.parallel.evaluate import PETScParallelEvaluator

def create_local_problem(omega_gi, orders):
    """
    Local problem definition using a domain corresponding to the global region
    `omega_gi`.
    """
    order_u, order_p = orders

    mesh = omega_gi.domain.mesh

    # All tasks have the whole mesh.
    bbox = mesh.get_bounding_box()
    min_x, max_x = bbox[:, 0]
    eps_x = 1e-8 * (max_x - min_x)

    min_y, max_y = bbox[:, 1]
    eps_y = 1e-8 * (max_y - min_y)

    mesh_i = Mesh.from_region(omega_gi, mesh, localize=True)
    domain_i = FEDomain('domain_i', mesh_i)
    omega_i = domain_i.create_region('Omega', 'all')

    gamma1_i = domain_i.create_region('Gamma1',
                                      'vertices in (x < %.10f)'
                                      % (min_x + eps_x),
                                      'facet', allow_empty=True)
    gamma2_i = domain_i.create_region('Gamma2',
                                      'vertices in (x > %.10f)'
                                      % (max_x - eps_x),
                                      'facet', allow_empty=True)
    gamma3_i = domain_i.create_region('Gamma3',
                                      'vertices in (y < %.10f)'
                                      % (min_y + eps_y),
                                      'facet', allow_empty=True)

    field1_i = Field.from_args('fu', nm.float64, mesh.dim, omega_i,
                               approx_order=order_u)

    field2_i = Field.from_args('fp', nm.float64, 1, omega_i,
                               approx_order=order_p)

    output('field 1: number of local DOFs:', field1_i.n_nod)
    output('field 2: number of local DOFs:', field2_i.n_nod)

    u_i = FieldVariable('u_i', 'unknown', field1_i, order=0)
    v_i = FieldVariable('v_i', 'test', field1_i, primary_var_name='u_i')
    p_i = FieldVariable('p_i', 'unknown', field2_i, order=1)
    q_i = FieldVariable('q_i', 'test', field2_i, primary_var_name='p_i')

    if mesh.dim == 2:
        alpha = 1e2 * nm.array([[0.132], [0.132], [0.092]])

    else:
        alpha = 1e2 * nm.array([[0.132], [0.132], [0.132],
                                [0.092], [0.092], [0.092]])

    mat = Material('m', D=stiffness_from_lame(mesh.dim, lam=10, mu=5),
                   k=1, alpha=alpha)
    integral = Integral('i', order=2*(max(order_u, order_p)))

    t11 = Term.new('dw_lin_elastic(m.D, v_i, u_i)',
                   integral, omega_i, m=mat, v_i=v_i, u_i=u_i)
    t12 = Term.new('dw_biot(m.alpha, v_i, p_i)',
                   integral, omega_i, m=mat, v_i=v_i, p_i=p_i)
    t21 = Term.new('dw_biot(m.alpha, u_i, q_i)',
                   integral, omega_i, m=mat, u_i=u_i, q_i=q_i)
    t22 = Term.new('dw_laplace(m.k, q_i, p_i)',
                   integral, omega_i, m=mat, q_i=q_i, p_i=p_i)

    eq1 = Equation('eq1', t11 - t12)
    eq2 = Equation('eq1', t21 + t22)
    eqs = Equations([eq1, eq2])

    ebc1 = EssentialBC('ebc1', gamma1_i, {'u_i.all' : 0.0})
    ebc2 = EssentialBC('ebc2', gamma2_i, {'u_i.0' : 0.05})
    def bc_fun(ts, coors, **kwargs):
        val = 0.3 * nm.sin(4 * nm.pi * (coors[:, 0] - min_x) / (max_x - min_x))
        return val

    fun = Function('bc_fun', bc_fun)
    ebc3 = EssentialBC('ebc3', gamma3_i, {'p_i.all' : fun})

    pb = Problem('problem_i', equations=eqs, active_only=False)
    pb.time_update(ebcs=Conditions([ebc1, ebc2, ebc3]))
    pb.update_materials()

    return pb

def solve_problem(mesh_filename, options, comm):
    order_u = options.order_u
    order_p = options.order_p

    rank, size = comm.Get_rank(), comm.Get_size()

    output('rank', rank, 'of', size)

    stats = Struct()
    timer = Timer('solve_timer')

    timer.start()
    mesh = Mesh.from_file(mesh_filename)
    stats.t_read_mesh = timer.stop()

    timer.start()
    if rank == 0:
        cell_tasks = pl.partition_mesh(mesh, size, use_metis=options.metis,
                                       verbose=True)

    else:
        cell_tasks = None

    stats.t_partition_mesh = timer.stop()

    output('creating global domain and fields...')
    timer.start()

    domain = FEDomain('domain', mesh)
    omega = domain.create_region('Omega', 'all')
    field1 = Field.from_args('fu', nm.float64, mesh.dim, omega,
                             approx_order=order_u)
    field2 = Field.from_args('fp', nm.float64, 1, omega,
                             approx_order=order_p)
    fields = [field1, field2]

    stats.t_create_global_fields = timer.stop()
    output('...done in', timer.dt)

    output('distributing fields...')
    timer.start()

    distribute = pl.distribute_fields_dofs
    lfds, gfds = distribute(fields, cell_tasks,
                            is_overlap=True,
                            use_expand_dofs=True,
                            save_inter_regions=options.save_inter_regions,
                            output_dir=options.output_dir,
                            comm=comm, verbose=True)

    stats.t_distribute_fields_dofs = timer.stop()
    output('...done in', timer.dt)

    output('creating local problem...')
    timer.start()

    cells = lfds[0].cells

    omega_gi = Region.from_cells(cells, domain)
    omega_gi.finalize()
    omega_gi.update_shape()

    pb = create_local_problem(omega_gi, [order_u, order_p])

    variables = pb.get_initial_state()

    variables.fill_state(0.0)
    variables.apply_ebc()

    stats.t_create_local_problem = timer.stop()
    output('...done in', timer.dt)

    output('allocating global system...')
    timer.start()

    sizes, drange, pdofs = pl.setup_composite_dofs(lfds, fields, variables,
                                                   verbose=True)
    pmtx, psol, prhs = pl.create_petsc_system(pb.mtx_a, sizes, pdofs, drange,
                                              is_overlap=True, comm=comm,
                                              verbose=True)

    stats.t_allocate_global_system = timer.stop()
    output('...done in', timer.dt)

    output('creating solver...')
    timer.start()

    conf = Struct(method='bcgsl', precond='jacobi', sub_precond='none',
                  i_max=10000, eps_a=1e-50, eps_r=1e-6, eps_d=1e4,
                  verbose=True)
    status = {}
    ls = PETScKrylovSolver(conf, comm=comm, mtx=pmtx, status=status)

    field_ranges = {}
    for ii, variable in enumerate(variables.iter_state(ordered=True)):
        field_ranges[variable.name] = lfds[ii].petsc_dofs_range

    ls.set_field_split(field_ranges, comm=comm)

    ev = PETScParallelEvaluator(pb, pdofs, drange, True,
                                psol, comm, verbose=True)

    nls_status = {}
    conf = Struct(method='newtonls',
                  i_max=5, eps_a=0, eps_r=1e-5, eps_s=0.0,
                  verbose=True)
    nls = PETScNonlinearSolver(conf, pmtx=pmtx, prhs=prhs, comm=comm,
                               fun=ev.eval_residual,
                               fun_grad=ev.eval_tangent_matrix,
                               lin_solver=ls, status=nls_status)

    stats.t_create_solver = timer.stop()
    output('...done in', timer.dt)

    output('solving...')
    timer.start()

    variables.apply_ebc()

    ev.psol_i[...] = variables()
    ev.gather(psol, ev.psol_i)

    psol = nls(psol)

    ev.scatter(ev.psol_i, psol)
    sol0_i = ev.psol_i[...]

    stats.t_solve = timer.stop()
    output('...done in', timer.dt)

    output('saving solution...')
    timer.start()

    variables.set_state(sol0_i)
    out = variables.create_output()

    filename = os.path.join(options.output_dir, 'sol_%02d.h5' % comm.rank)
    pb.domain.mesh.write(filename, io='auto', out=out)

    gather_to_zero = pl.create_gather_to_zero(psol)

    psol_full = gather_to_zero(psol)

    if comm.rank == 0:
        sol = psol_full[...].copy()

        u = FieldVariable('u', 'parameter', field1,
                          primary_var_name='(set-to-None)')
        remap = gfds[0].id_map
        ug = sol[remap]

        p = FieldVariable('p', 'parameter', field2,
                          primary_var_name='(set-to-None)')
        remap = gfds[1].id_map
        pg = sol[remap]

        if (((order_u == 1) and (order_p == 1))
            or (options.linearization == 'strip')):
            out = u.create_output(ug)
            out.update(p.create_output(pg))
            filename = os.path.join(options.output_dir, 'sol.h5')
            mesh.write(filename, io='auto', out=out)

        else:
            out = u.create_output(ug, linearization=Struct(kind='adaptive',
                                                           min_level=0,
                                                           max_level=order_u,
                                                           eps=1e-3))

            filename = os.path.join(options.output_dir, 'sol_u.h5')
            out['u'].mesh.write(filename, io='auto', out=out)

            out = p.create_output(pg, linearization=Struct(kind='adaptive',
                                                           min_level=0,
                                                           max_level=order_p,
                                                           eps=1e-3))

            filename = os.path.join(options.output_dir, 'sol_p.h5')
            out['p'].mesh.write(filename, io='auto', out=out)

    stats.t_save_solution = timer.stop()
    output('...done in', timer.dt)

    stats.t_total = timer.total

    stats.n_dof = sizes[1]
    stats.n_dof_local = sizes[0]
    stats.n_cell = omega.shape.n_cell
    stats.n_cell_local = omega_gi.shape.n_cell

    return stats

helps = {
    'output_dir' :
    'output directory',
    'dims' :
    'dimensions of the block [default: %(default)s]',
    'shape' :
    'shape (counts of nodes in x, y, z) of the block [default: %(default)s]',
    'centre' :
    'centre of the block [default: %(default)s]',
    '2d' :
    'generate a 2D rectangle, the third components of the above'
    ' options are ignored',
    'u-order' :
    'displacement field approximation order',
    'p-order' :
    'pressure field approximation order',
    'linearization' :
    'linearization used for storing the results with approximation order > 1'
    ' [default: %(default)s]',
    'metis' :
    'use metis for domain partitioning',
    'save_inter_regions' :
    'save inter-task regions for debugging partitioning problems',
    'stats_filename' :
    'name of the stats file for storing elapsed time statistics',
    'new_stats' :
    'create a new stats file with a header line (overwrites existing!)',
    'silent' : 'do not print messages to screen',
    'clear' :
    'clear old solution files from output directory'
    ' (DANGEROUS - use with care!)',
}

def main():
    parser = ArgumentParser(description=__doc__.rstrip(),
                            formatter_class=RawDescriptionHelpFormatter)
    parser.add_argument('output_dir', help=helps['output_dir'])
    parser.add_argument('--dims', metavar='dims',
                        action='store', dest='dims',
                        default='1.0,1.0,1.0', help=helps['dims'])
    parser.add_argument('--shape', metavar='shape',
                        action='store', dest='shape',
                        default='11,11,11', help=helps['shape'])
    parser.add_argument('--centre', metavar='centre',
                        action='store', dest='centre',
                        default='0.0,0.0,0.0', help=helps['centre'])
    parser.add_argument('-2', '--2d',
                        action='store_true', dest='is_2d',
                        default=False, help=helps['2d'])
    parser.add_argument('--u-order', metavar='int', type=int,
                        action='store', dest='order_u',
                        default=1, help=helps['u-order'])
    parser.add_argument('--p-order', metavar='int', type=int,
                        action='store', dest='order_p',
                        default=1, help=helps['p-order'])
    parser.add_argument('--linearization', choices=['strip', 'adaptive'],
                        action='store', dest='linearization',
                        default='strip', help=helps['linearization'])
    parser.add_argument('--metis',
                        action='store_true', dest='metis',
                        default=False, help=helps['metis'])
    parser.add_argument('--save-inter-regions',
                        action='store_true', dest='save_inter_regions',
                        default=False, help=helps['save_inter_regions'])
    parser.add_argument('--stats', metavar='filename',
                        action='store', dest='stats_filename',
                        default=None, help=helps['stats_filename'])
    parser.add_argument('--new-stats',
                        action='store_true', dest='new_stats',
                        default=False, help=helps['new_stats'])
    parser.add_argument('--silent',
                        action='store_true', dest='silent',
                        default=False, help=helps['silent'])
    parser.add_argument('--clear',
                        action='store_true', dest='clear',
                        default=False, help=helps['clear'])
    options, petsc_opts = parser.parse_known_args()

    comm = pl.PETSc.COMM_WORLD

    output_dir = options.output_dir

    filename = os.path.join(output_dir, 'output_log_%02d.txt' % comm.rank)
    if comm.rank == 0:
        ensure_path(filename)
    comm.barrier()

    output.prefix = 'sfepy_%02d:' % comm.rank
    output.set_output(filename=filename, combined=options.silent == False)

    output('petsc options:', petsc_opts)

    mesh_filename = os.path.join(options.output_dir, 'para.h5')

    dim = 2 if options.is_2d else 3
    dims = nm.array(eval(options.dims), dtype=nm.float64)[:dim]
    shape = nm.array(eval(options.shape), dtype=nm.int32)[:dim]
    centre = nm.array(eval(options.centre), dtype=nm.float64)[:dim]

    output('dimensions:', dims)
    output('shape:     ', shape)
    output('centre:    ', centre)

    if comm.rank == 0:
        from sfepy.mesh.mesh_generators import gen_block_mesh

        if options.clear:
            remove_files_patterns(output_dir,
                                  ['*.h5', '*.mesh', '*.txt'],
                                  ignores=['output_log_%02d.txt' % ii
                                           for ii in range(comm.size)],
                                  verbose=True)

        save_options(os.path.join(output_dir, 'options.txt'),
                     [('options', vars(options))])

        mesh = gen_block_mesh(dims, shape, centre, name='block-fem',
                              verbose=True)
        mesh.write(mesh_filename, io='auto')

    comm.barrier()

    output('field u order:', options.order_u)
    output('field p order:', options.order_p)

    stats = solve_problem(mesh_filename, options, comm)
    output(stats)

    if options.stats_filename:
        from sfepy.examples.diffusion.poisson_parallel_interactive import save_stats
        if comm.rank == 0:
            ensure_path(options.stats_filename)
        comm.barrier()

        pars = Struct(dim=dim, shape=shape, order=options.order_u)
        pl.call_in_rank_order(
            lambda rank, comm:
            save_stats(options.stats_filename, pars, stats, options.new_stats,
                       rank, comm),
            comm
        )

if __name__ == '__main__':
    main()
