Description

Inflation of a Mooney-Rivlin hyperelastic balloon.

This example serves as a verification of the membrane term (dw_tl_membrane, TLMembraneTerm) implementation.

Following Rivlin 1952 and Dumais, the analytical relation between a relative stretch of a thin (membrane) sphere made of the Mooney-Rivlin material of the undeformed radius , membrane thickness and the inner pressure is

where , are the Mooney-Rivlin material parameters.

In the equations below, only the surface of the domain is mechanically important - a stiff 2D membrane is embedded in the 3D space and coincides with the balloon surface. The volume is very soft, to simulate a fluid-filled cavity. A similar model could be used to model e.g. plant cells. The balloon surface is loaded by prescribing the inner volume change . The fluid pressure in the cavity is a single scalar value, enforced either by the 'integral_mean_value' linear combination condition, when use_lcbcs argument of define() is set to True (default), or by the constant approximation.

Find and a constant such that:

• balance of forces:



• volume conservation:



where

	deformation gradient
	right Cauchy-Green deformation tensor
	Green strain tensor
	effective second Piola-Kirchhoff stress tensor

The effective stress is given by:

The and variables correspond to , , respectively, transformed to the membrane coordinate frame.

Use the following command to show a comparison of the FEM solution with the above analytical relation (notice the nonlinearity of the dependence):

sfepy-run sfepy/examples/large_deformation/balloon.py -d 'plot=True'

or:

sfepy-run sfepy/examples/large_deformation/balloon.py -d 'plot=True, use_lcbcs=False'

The agreement should be very good, even though the mesh is coarse.

View the results using:

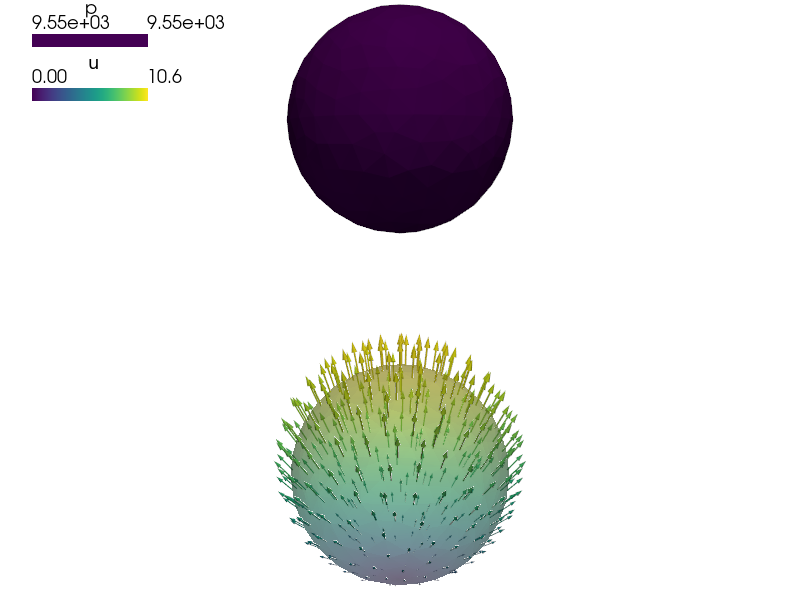

sfepy-view unit_ball.h5 -f u:wu:s12:p0 p:s12:p1

This example uses the adaptive time-stepping solver ('ts.adaptive') with the default adaptivity function adapt_time_step(). Plot the used time steps by:

python3 sfepy/scripts/plot_times.py unit_ball.h5
